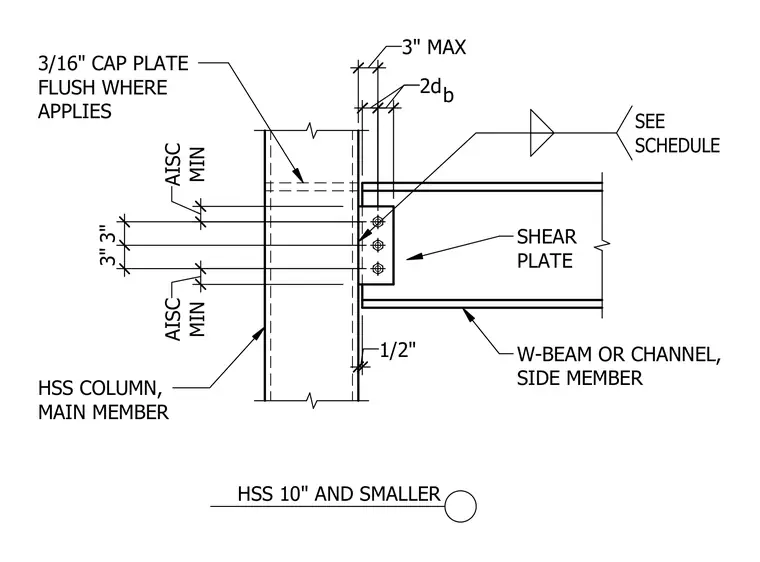

A wide flange beam or channel side member connects to a hollow structural section column using a one-half inch shear plate. The shear plate is welded to the main member and bolted to the supported beam web with spacing defined per schedule, maintaining a two-diameter bolt clearance and three-inch maximum edge distances with American Institute of Steel Construction minimums. A three-sixteenths inch cap plate is provided flush where applicable at the top of the hollow structural section column, which applies to sections ten inches and smaller.
3" 3" 3" MAX 2d 2d MIN AISC MIN AISC b W-BEAM OR CHANNEL, SIDE MEMBER SEE SCHEDULE 3/16" CAP PLATE FLUSH WHERE APPLIES HSS COLUMN, MAIN MEMBER 1/2" SHEAR PLATE HSS 10" AND SMALLER
