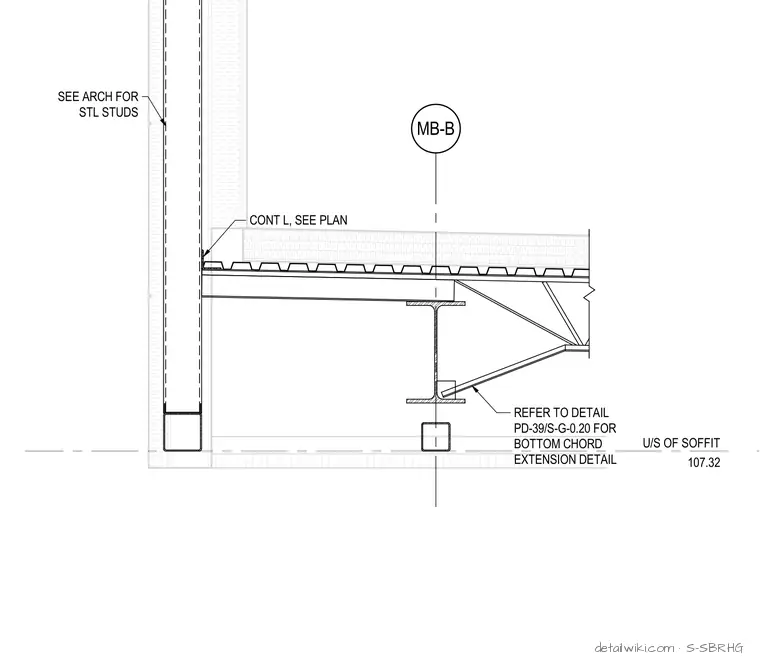

The detail shows a steel framing connection where a joist outrigger extends from a main structural beam to support edge conditions near cold-formed steel studs. Key components include a wide flange beam, an outrigger truss element, a continuous angle connected to the edge, and hollow structural sections. It includes references to specific architectural details for steel studs and bottom chord extensions.
Text on the drawing
MB-B U/S OF SOFFIT 107.32 SEE ARCH FOR STL STUDS CONT L, SEE PLAN REFER TO DETAIL PD-39/S-G-0.20 FOR BOTTOM CHORD EXTENSION DETAIL
