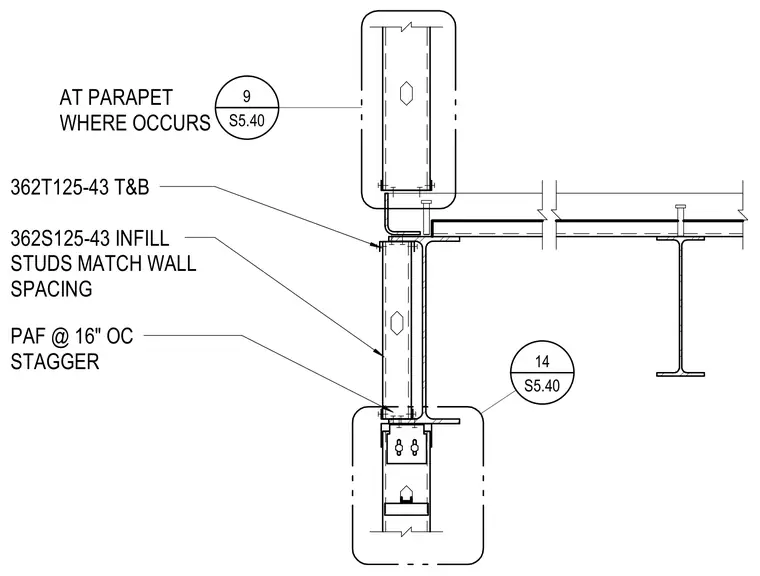

Cold-formed steel infill studs of size 362S125-43 match the wall spacing and attach to top and bottom tracks designated as 362T125-43. The assembly is secured using powder-actuated fasteners spaced at 16 inches on center staggered. The infill framing terminates below a structural wide flange steel beam supporting a metal deck.
S5.40 9 362S125-43 INFILL STUDS MATCH WALL SPACING 362T125-43 T&B PAF @ 16" OC STAGGER S5.40 14 AT PARAPET WHERE OCCURS
