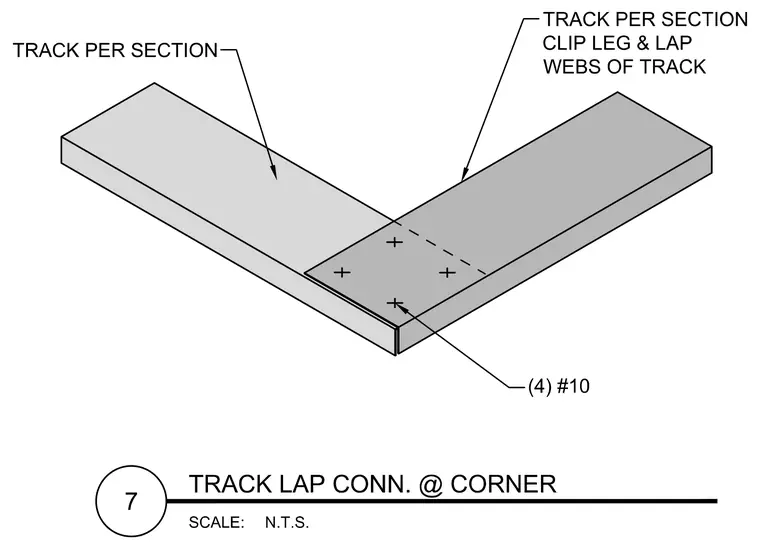

Two cold-formed steel track members meet at a building corner with their webs lapped together. A track per section is specified for the framing members. The connection is secured using four number ten fasteners installed through the clip leg and overlapping track webs.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
