Structural · S-SBHMV

Built-Up Steps

Materials

Elements

Floors / Slabs Site / Paving Reinforcing

About this detail

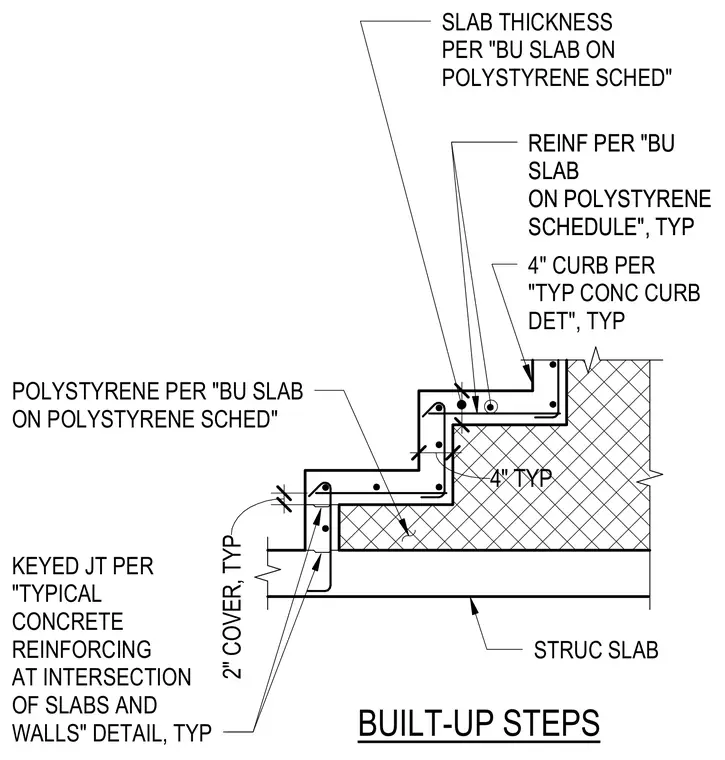

Concrete built-up steps are cast over a polystyrene fill base, supported below by a structural slab with a keyed joint connection. The assembly incorporates standard concrete reinforcing bars, a typical four-inch curb profile, and maintains two inches of concrete cover throughout. Reinforcement placement, slab thickness, and polystyrene specifications adhere to the built-up slab schedule.
