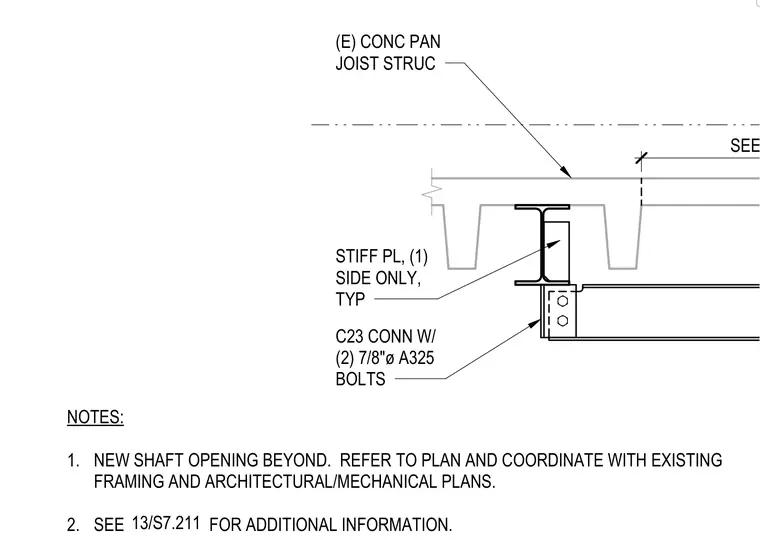

A steel beam frames below an existing concrete pan joist structure using a typical C23 connection secured with two 7/8-inch diameter A325 bolts. A stiffener plate is provided on one side only typical at the connection. New shaft openings beyond must be coordinated with existing framing, architectural, and mechanical plans.
(E) CONC PAN JOIST STRUC STIFF PL, (1) SIDE ONLY, TYP C23 CONN W/ (2) 7/8"ø A325 BOLTS NOTES: 1. NEW SHAFT OPENING BEYOND. REFER TO PLAN AND COORDINATE WITH EXISTING FRAMING AND ARCHITECTURAL/MECHANICAL PLANS. 2. SEE FOR ADDITIONAL INFORMATION. 13/S7.211 SEE NOTE 1
