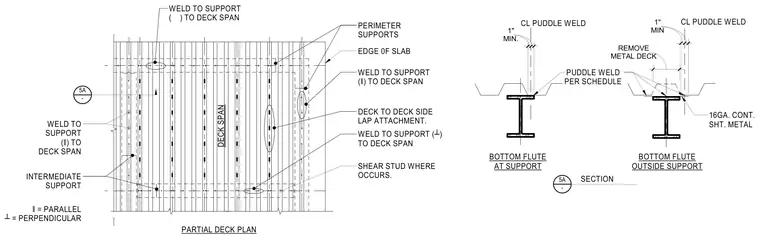

Metal deck layout and welding configurations indicating puddle welds at intermediate supports and perimeter framing. Deck side lap attachments and shear studs are placed where required by design. Section details illustrate puddle weld placement at the bottom flute both at supports and outside supports, including a continuous sixteen-gauge sheet metal closure where applicable.
PARTIAL DECK PLAN WELD TO SUPPORT ( ) TO DECK SPAN PERIMETER SUPPORTS EDGE 0F SLAB WELD TO SUPPORT (ǁ) TO DECK SPAN DECK TO DECK SIDE LAP ATTACHMENT. WELD TO SUPPORT (┴) TO DECK SPAN SHEAR STUD WHERE OCCURS. WELD TO SUPPORT (ǁ) TO DECK SPAN INTERMEDIATE SUPPORT ǁ = PARALLEL ┴= PERPENDICULAR 5A - DECK SPAN . MIN. 1" METAL DECK REMOVE MIN 1". PUDDLE WELD PER SCHEDULE CL PUDDLE WELD CL PUDDLE WELD BOTTOM FLUTE AT SUPPORT BOTTOM FLUTE OUTSIDE SUPPORT 16GA. CONT. SHT. METAL 5A - SECTION
