Structural · S-SB5CP

Glulam Column to Flitch Beam Transfer Connection

Materials

Steel Timber / Wood

Elements

Columns Beams Floors / Slabs

Connections

Bolted Connection

About this detail

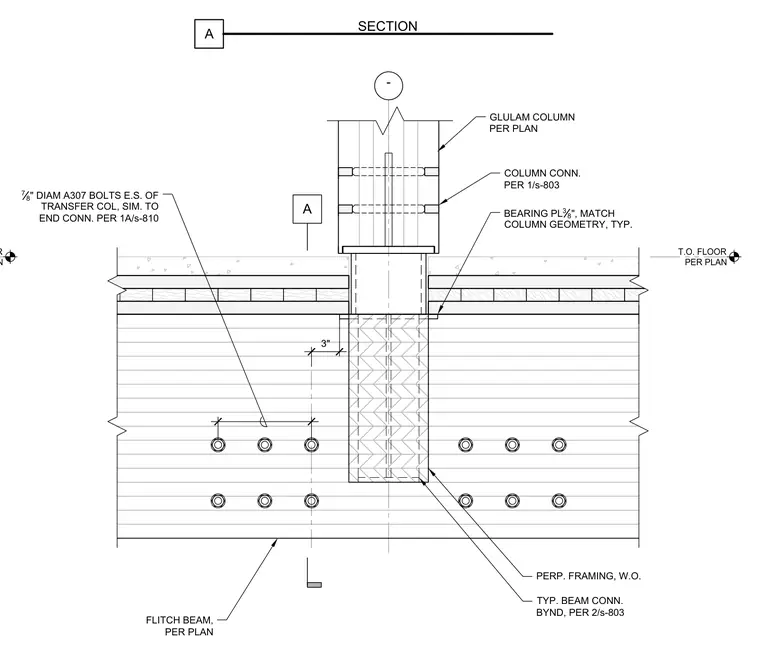

A glulam column bears on a flitch beam sized per plan, utilizing a three-eighths-inch thick bearing plate matching the column geometry typically. Seven-eighths-inch diameter A307 bolts secure each side of the transfer column, similar to the end connection per detail 1A/s-810. Perpendicular wood framing with wood-on-wood bearing ties into the assembly alongside typical beam connections detailed elsewhere on sheet s-803. The top of the floor aligns with the plan elevation.
