A heavy collector bolted connection frames into a steel column centerline with a gusset plate. The connection utilizes two rows of four 1-inch diameter A490-N bolts with vertical short slotted holes typical. A note directs the builder to see detail A for additional information not shown.

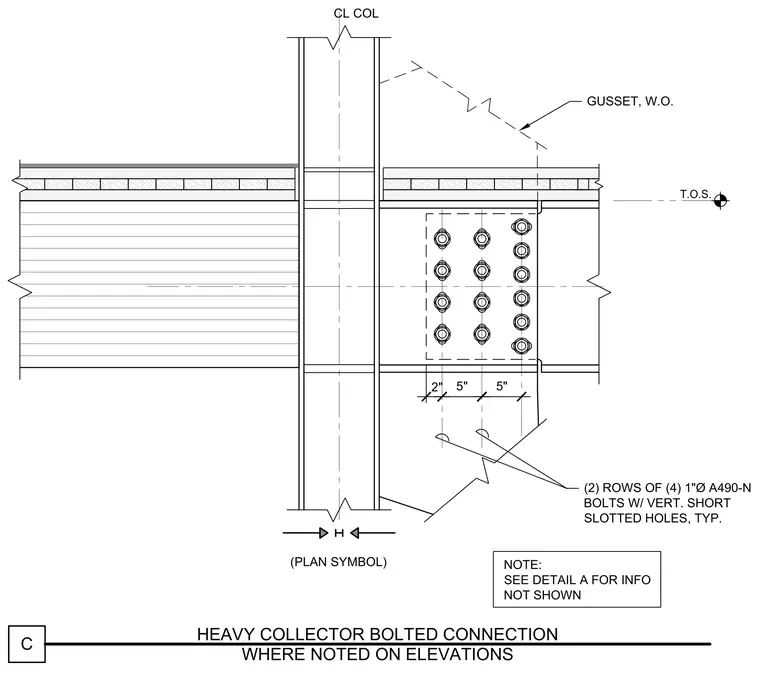

C HEAVY COLLECTOR BOLTED CONNECTION WHERE NOTED ON ELEVATIONS (PLAN SYMBOL) CL COL 5" 2" GUSSET, W.O. T.O.S. 5" NOTE: SEE DETAIL A FOR INFO NOT SHOWN (2) ROWS OF (4) 1"Ø A490-N BOLTS W/ VERT. SHORT SLOTTED HOLES, TYP.
