A structural connection links a steel stair stringer to a concrete slab-on-grade and a thickened slab edge. The lower stringer anchorage utilizes an L3x3x1/4 angle secured with three-quarter-inch diameter by eight-inch expansion anchors at each stringer, welded with three-sixteenth-inch fillets on three sides. The upper stringer connection incorporates a continuous L6x4x3/8 angle with number five galvanized reinforcing bars at twelve inches on center embedded in the thickened slab. The stair stringer is provided by the stair manufacturer, with slab thickness and dimensions sized per plan.

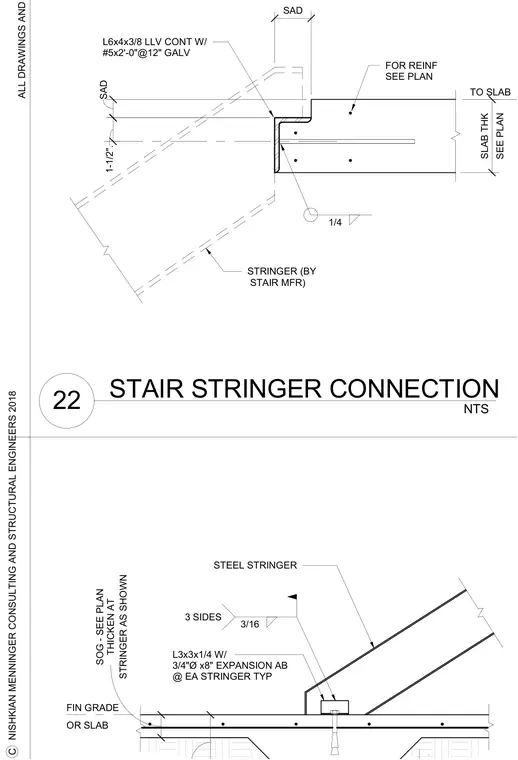

OR SLAB FIN GRADE STEEL STRINGER L3x3x1/4 W/ 3/4"Ø x8" EXPANSION AB @ EA STRINGER TYP 3/16 3 SIDES STRINGER AS SHOWN SOG - SEE PLAN THICKEN AT TO SLAB L6x4x3/8 LLV CONT W/ #5x2'-0"@12" GALV FOR REINF SEE PLAN STRINGER (BY STAIR MFR) SAD SEE PLAN SLAB THK SAD 1-1/2". 1/4 C NISHKIAN MENNINGER CONSULTING AND STRUCTURAL ENGINEERS 2018 ALL DRAWINGS AND WRITTEN MATERIAL APPEARING HEREIN CONSTITUTE THE ORIGINAL AND UNPUBLISHED WORKS OF THE ENGINEER AND THE SAME WAY MAY NOT BE DUPLICATED, USED OR DISCLOSED WITHOUT THE WRITTEN CONSENT OF THE ENGINEER. NTS 22 STAIR STRINGER CONNECTION
