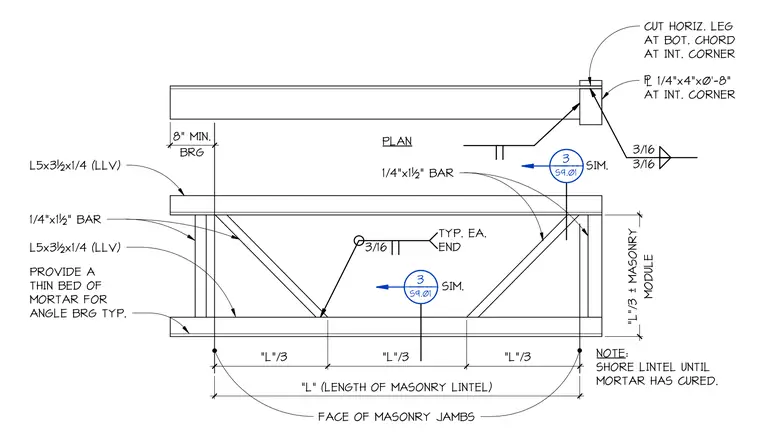

A truss-type masonry veneer lintel support system configured with L5x3½x1/4 angles and 1/4"x1½" steel bars. The assembly spans between the faces of masonry jambs with an 8-inch minimum bearing length at each end, requiring a thin bed of mortar for angle bearing typical. Internal corner conditions incorporate a 1/4"x4"x0'-8" plate with the horizontal leg of the angle cut at the bottom chord. Additional components include diagonal web members welded with 3/16-inch fillet welds typical at each end. A note specifies to shore the lintel until the mortar has cured.
"L" (LENGTH OF MASONRY LINTEL) BRG 8" MIN. MODULE "L"/3 ± MASONRY "L"/3 "L"/3 "L"/3 3/16 3/16 SIM. SIM. 3/16 TYP. EA. END FACE OF MASONRY JAMBS PLAN L5x3½x1/4 (LLV) CUT HORIZ. LEG AT BOT. CHORD AT INT. CORNER 3 1/4"x4"x0'-8" AT INT. CORNER NOTE: SHORE LINTEL UNTIL MORTAR HAS CURED. 1/4"x1½" BAR 1/4"x1½" BAR L5x3½x1/4 (LLV) PROVIDE A THIN BED OF MORTAR FOR ANGLE BRG TYP. 3 S9.01 3██████████ 3██████████ 3███████████████ ██████████3 ██████████3 ██████████3 ██████████3 3 S9.01 3██████████ 3██████████ 3███████████████ ██████████3 ██████████3 ██████████3 ██████████3
