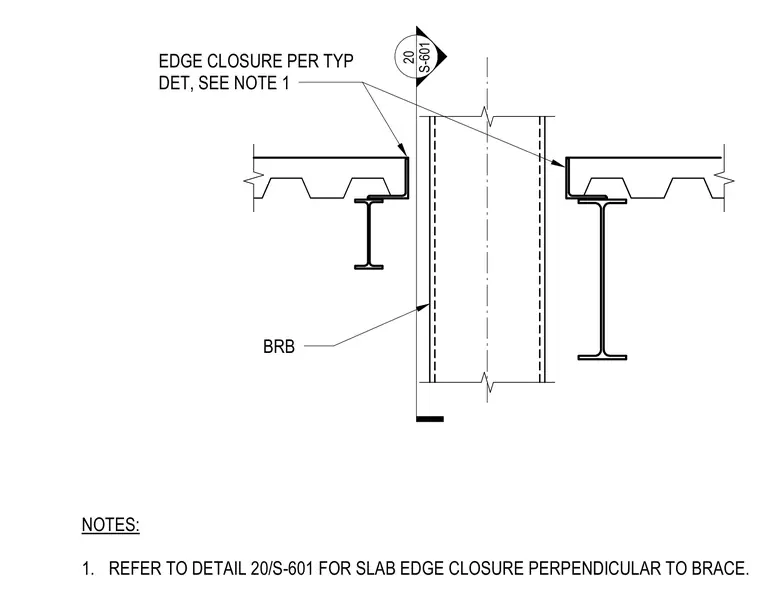

Slab edge support condition running parallel to a buckling-restrained brace. Concrete slabs on metal deck bear on structural steel framing members with edge closure conditions. Coordinate perpendicular slab edge closures with related details referenced on the structural drawings.
S-601 20 BRB NOTES: 1. REFER TO DETAIL 20/S-601 FOR SLAB EDGE CLOSURE PERPENDICULAR TO BRACE. EDGE CLOSURE PER TYP DET, SEE NOTE 1
