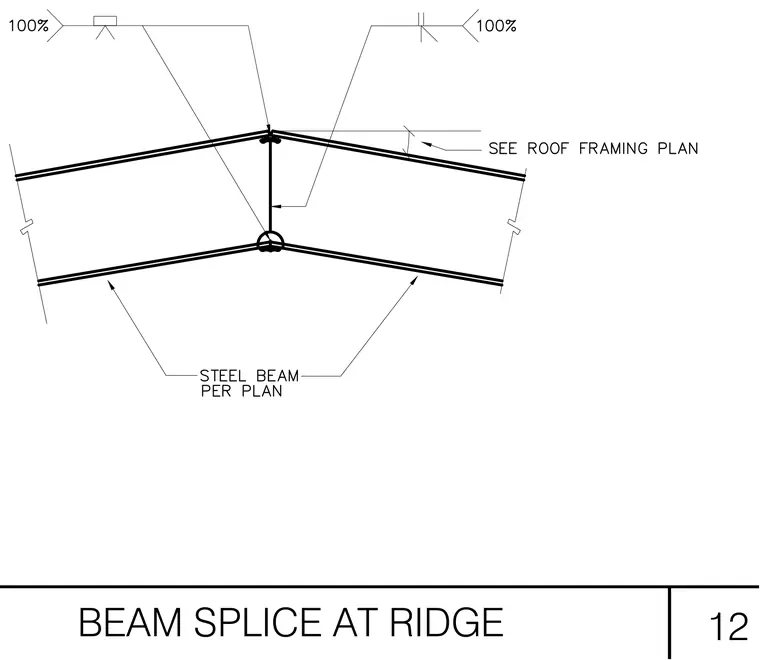

Steel beams sized per plan meet at a roof ridge with a welded splice connection. One hundred percent penetration welds secure the structural steel members at the apex and vertical web junction. Field sizing and member sizing are coordinated per the roof framing plan.
