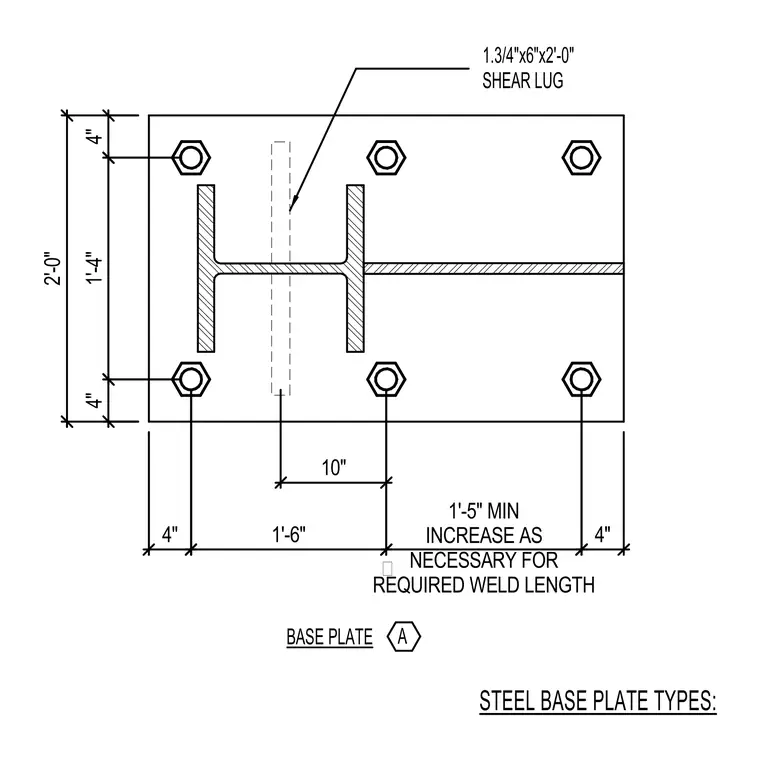

This steel column base plate assembly features a 1-3/4 inch by 6 inch by 2-foot-0-inch shear lug positioned between the column flanges. The rectangular base plate measures 2 feet 0 inches wide with detailed anchor bolt spacings of 4 inches, 1-foot-4 inches, and 1-foot-5 inches minimum, which can be increased as necessary for the required weld length. Six anchor bolts secure the assembly in a symmetrical pattern around the structural steel column profile.
10" ℄ 1.3/4"x6"x2'-0" SHEAR LUG 4" 1'-6" 1'-5" MIN INCREASE AS NECESSARY FOR REQUIRED WELD LENGTH 4" 4" 1'-4" 4" 2'-0" STEEL BASE PLATE TYPES: BASE PLATE A
