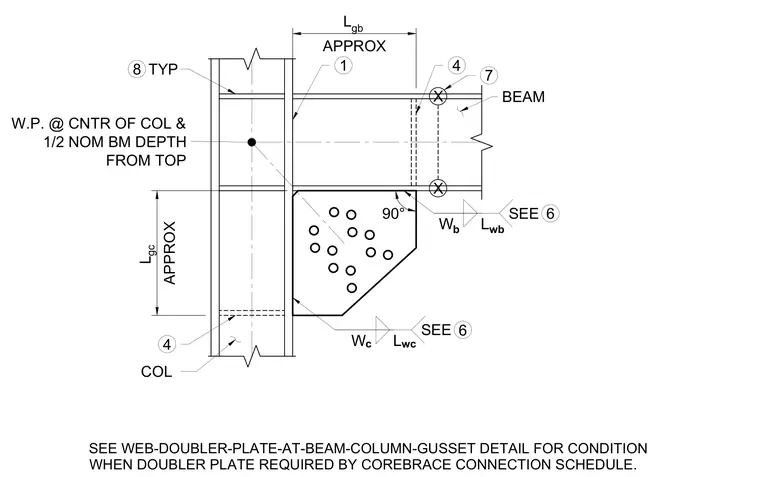

A typical brace top connection where a gusset plate frames into a steel column and beam assembly. The work point is located at the center of the column and one-half the nominal beam depth from the top flange. The connection incorporates fillet welds and bolted or welded interfaces, with dimensions Lgb and Lgc indicated approximately. A web doubler plate may be required at the beam-column-gusset intersection per the corebrace connection schedule.
COL 4 W.P. @ CNTR OF COL & 1/2 NOM BM DEPTH FROM TOP L gb APPROX 6 SEE BEAM 90° L gc APPROX 6 SEE W c W b X X 1 4 7 L wc L wb 8 TYP SEE WEB-DOUBLER-PLATE-AT-BEAM-COLUMN-GUSSET DETAIL FOR CONDITION WHEN DOUBLER PLATE REQUIRED BY COREBRACE CONNECTION SCHEDULE.
