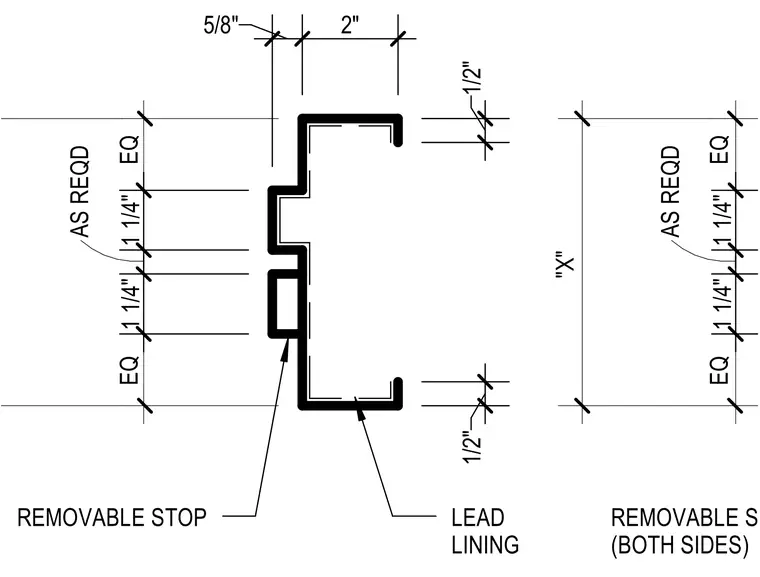

This lead-lined window frame assembly incorporates a channel profile fitted with removable stops on both sides and continuous lead lining as required. The frame profile measures 2 inches wide with 1/2-inch return lips and includes centered stepped channels dimensioned at 1-1/4 inches with 5/8-inch clearances.
5/8" 2" 1 1/4" 1 1/4" 1/2" 1/2" 1 1/4" 1 1/4" EQ EQ EQ EQ REMOVABLE STOP REMOVABLE STOP (BOTH SIDES) LEAD LINING AS REQD AS REQD "X"
