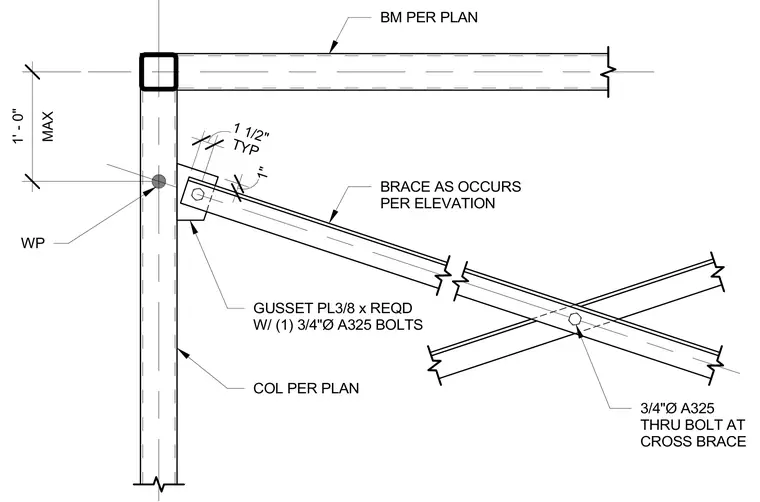

A bracing connection features a brace member connected to a column using a three-eighths-inch thick gusset plate secured with one three-quarter-inch diameter A325 bolt. The brace member aligns with a work point located a maximum of one foot zero inches below the beam-to-column intersection. A cross brace intersects the main brace member, fastened with a single three-quarter-inch diameter A325 through bolt. The beam and column sizes are determined per the structural framing plan, with the brace configuration varying as shown on elevation.
MAX 1' - 0" WP TYP 1 1/2" 1" BRACE AS OCCURS PER ELEVATION GUSSET PL3/8 x REQD W/ (1) 3/4"Ø A325 BOLTS 3/4"Ø A325 THRU BOLT AT CROSS BRACE BM PER PLAN COL PER PLAN
