Two 2x12 members fastened with two rows of sixteen-penny nails at six inches on center form the core backing assembly, flanked by two-by-six studs at each end fastened with staggered sixteen-penny nails at six inches on center. Two A35 clips and two LTP4 clips secure the post to the top plate at the upper connection. Two A35 clips and two LTP4 clips secure the post to the sill plate at the lower connection.

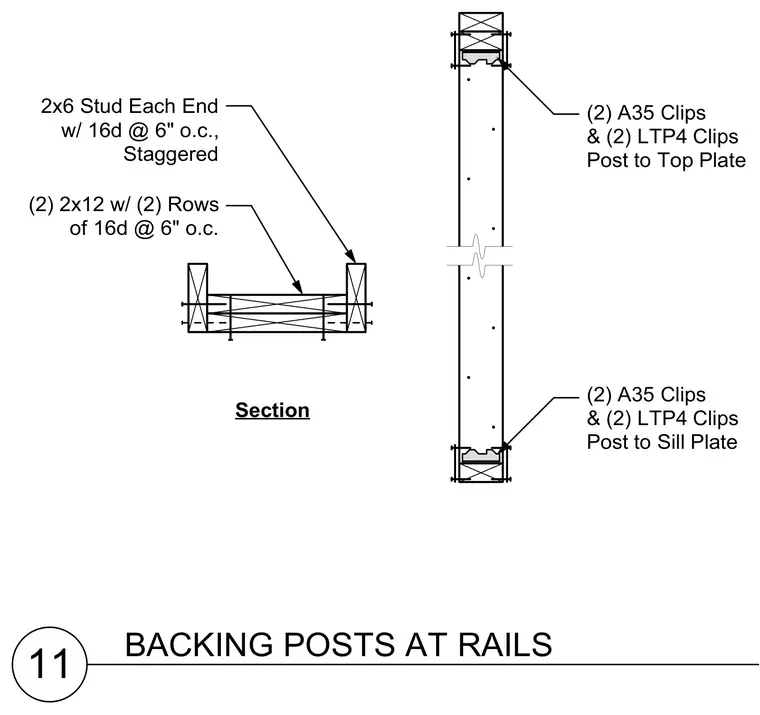

11 Section (2) 2x12 w/ (2) Rows of 16d @ 6" o.c. 2x6 Stud Each End w/ 16d @ 6" o.c., Staggered (2) A35 Clips & (2) LTP4 Clips Post to Top Plate (2) A35 Clips & (2) LTP4 Clips Post to Sill Plate BACKING POSTS AT RAILS
