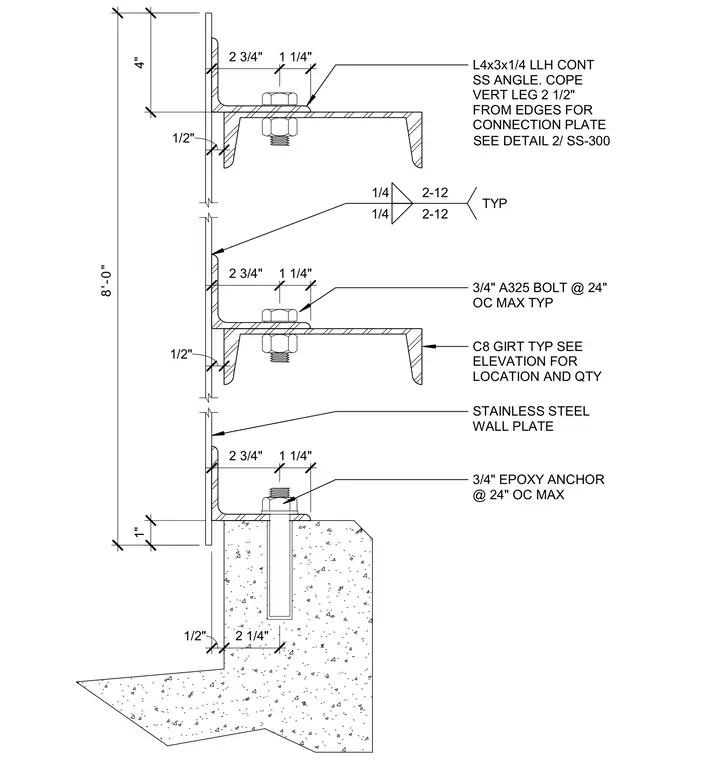

A continuous stainless steel wall plate is secured at eight-foot intervals with stainless steel angles and channel girts. The connection incorporates three-quarter-inch A325 bolts spaced at twenty-four inches on center maximum. Three-quarter-inch epoxy anchors secure the base assembly into the concrete substrate at twenty-four inches on center maximum. Fillet welds of one-quarter-inch size are applied with two-inch welds at twelve-inch spacing typical along the girt connections. Vertical legs of the continuous stainless steel angles are coped two and one-half inches from edges for connection plates.
1/4 2-12 1/4 2-12 TYP STAINLESS STEEL WALL PLATE 2 3/4" 1 1/4" 1/2" 2 3/4" 1 1/4" 1/2" 1/2" 2 1/4" 3/4" EPOXY ANCHOR @ 24" OC MAX 3/4" A325 BOLT @ 24" OC MAX TYP 2 3/4" 1 1/4" 1" 4" 8'-0" L4x3x1/4 LLH CONT SS ANGLE. COPE VERT LEG 2 1/2" FROM EDGES FOR CONNECTION PLATE SEE DETAIL 2/ SS-300 C8 GIRT TYP SEE ELEVATION FOR LOCATION AND QTY
