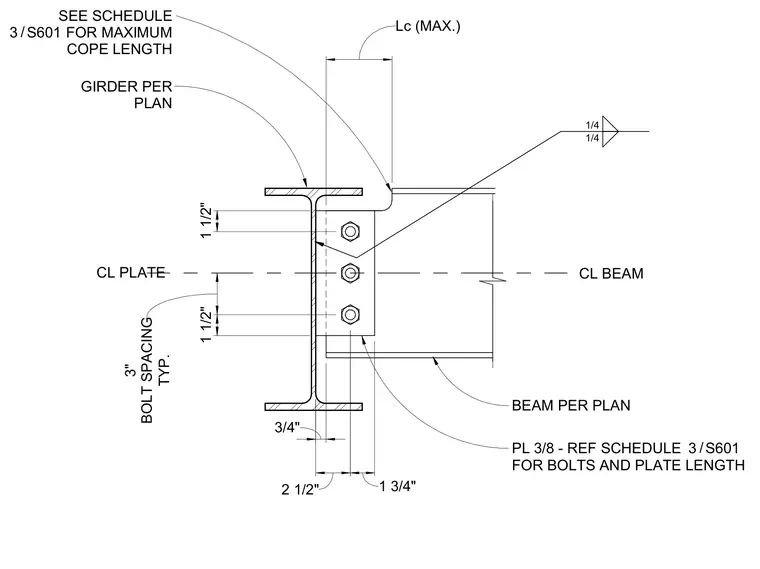

A wide flange beam connects to a supporting wide flange girder web using a three-quarter-inch thick plate welded to the girder and bolted to the supported beam web. The supported beam features a coped top flange with a maximum cope length per plan and a quarter-inch fillet weld connecting the shear plate to the supporting element. The connection utilizes a three-inch typical bolt spacing with one-and-a-half-inch edge distances from the centerlines. Bolt diameters and exact plate dimensions are referenced to the structural schedule.
CL BEAM CL PLATE PL 3/8 - REF SCHEDULE FOR BOLTS AND PLATE LENGTH BEAM PER PLAN SEE SCHEDULE FOR MAXIMUM COPE LENGTH GIRDER PER PLAN 1 1/2" 1 1/2" TYP. 3" BOLT SPACING 2 1/2" 1 3/4" Lc (MAX.) 1/4 1/4 3/4" / 3 S601 / 3 S601
