Structural · S-SA338

Threaded Rod Hanger Anchorage at Concrete Filled Metal Deck

Materials

Concrete Steel Metal (misc.)

Elements

Decks Anchors / Embeds

Connections

Bolted Connection Embed Plate

About this detail

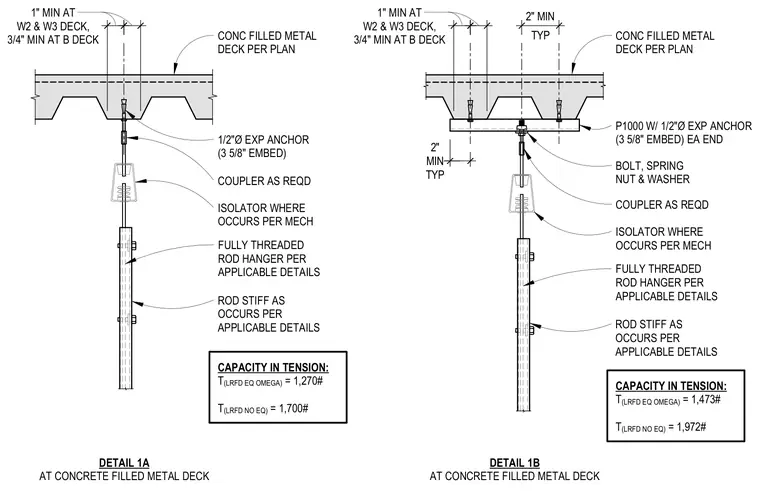

These details show threaded rod hanger anchorages suspended from a concrete-filled metal deck. The assembly features a half-inch diameter expansion anchor with three and five-eighths inch embedment, supporting a fully threaded rod hanger with a mechanical coupler and vibration isolator as required. Detail 1A anchors directly into the deck flute, while Detail 1B utilizes a P1000 strut channel secured with expansion anchors at each end. Tension capacities are specified for both seismic and non-seismic conditions.
