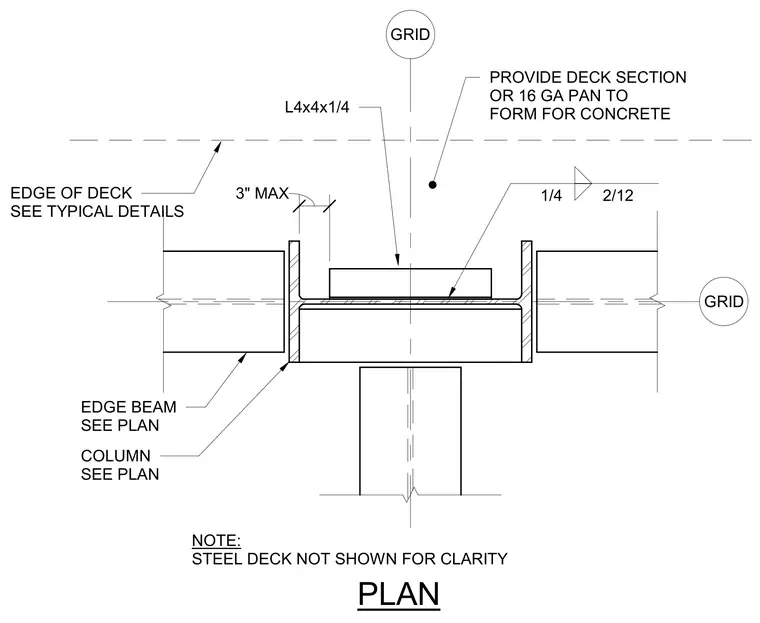

This plan detail shows an exterior column supporting an edge beam sized per plan with adjacent edge of deck conditions located per typical details. A 3-inch maximum dimension is indicated between components, incorporating an L4x4x1/4 angle and a 1/4 inch weld. A note specifies to provide a deck section or sixteen-gauge pan to form for concrete, with steel deck omitted for clarity.
GRID GRID PROVIDE DECK SECTION OR 16 GA PAN TO FORM FOR CONCRETE COLUMN SEE PLAN EDGE BEAM SEE PLAN EDGE OF DECK SEE TYPICAL DETAILS L4x4x1/4 1/4 2/12 3" MAX NOTE: STEEL DECK NOT SHOWN FOR CLARITY PLAN
