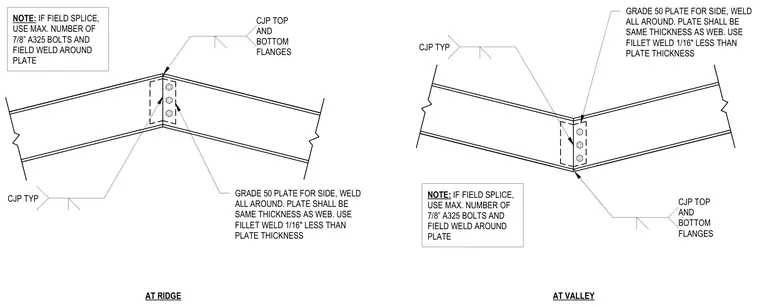

Steel beam splice connections occur at roof ridge and valley locations using complete joint penetration welds at the top and bottom flanges. Grade 50 side plates match the web thickness and are welded all around with fillet welds sized one-sixteenth inch less than the plate thickness. Optional field splices incorporate the maximum number of seven-eighths inch A325 bolts through the side plates with continuous field welds around the perimeter.
CJP TOP AND BOTTOM FLANGES CJP TYP NOTE: IF FIELD SPLICE, USE MAX. NUMBER OF 7/8” A325 BOLTS AND FIELD WELD AROUND PLATE GRADE 50 PLATE FOR SIDE, WELD ALL AROUND. PLATE SHALL BE SAME THICKNESS AS WEB. USE FILLET WELD 1/16" LESS THAN PLATE THICKNESS AT RIDGE AT VALLEY CJP TOP AND BOTTOM FLANGES GRADE 50 PLATE FOR SIDE, WELD ALL AROUND. PLATE SHALL BE SAME THICKNESS AS WEB. USE FILLET WELD 1/16" LESS THAN PLATE THICKNESS CJP TYP NOTE: IF FIELD SPLICE, USE MAX. NUMBER OF 7/8” A325 BOLTS AND FIELD WELD AROUND PLATE
