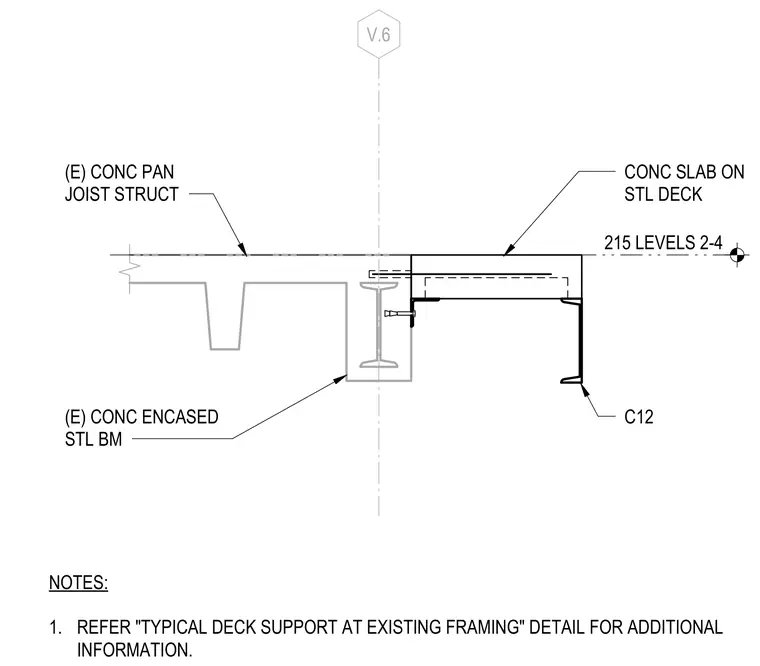

An existing concrete-encased steel beam supports a concrete slab on metal deck on one side and an existing concrete pan joist structure on the other. A C12 channel profile acts as an edge form or framing member at the slab perimeter. Additional framing and deck support conditions are referenced to typical details.
V.6 215 LEVELS 2-4 C12 CONC SLAB ON STL DECK (E) CONC PAN JOIST STRUCT (E) CONC ENCASED STL BM NOTES: 1. REFER "TYPICAL DECK SUPPORT AT EXISTING FRAMING" DETAIL FOR ADDITIONAL INFORMATION.
