Chiller Tower Concrete Tilt-Up Wall Panel Connection to Footing

Materials

Concrete Masonry / CMU

Elements

Walls Floors / Slabs Foundations / Footings Arches Connections / Plates Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

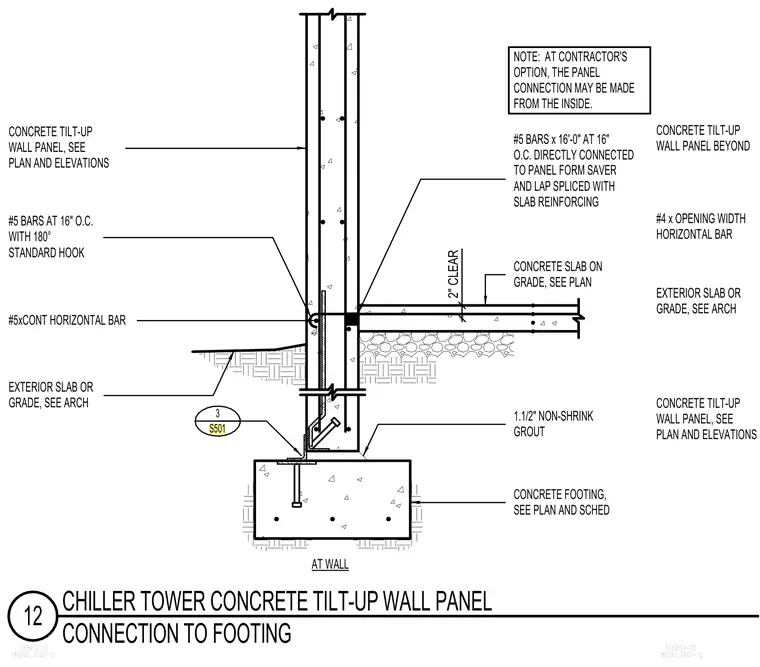

A concrete tilt-up wall panel bears on a concrete footing with one and one-half inches of non-shrink grout beneath the panel base. Number five reinforcing bars at sixteen inches on center are directly connected to the panel form saver and lap spliced with the slab reinforcing, featuring a one hundred eighty degree standard hook. Number five continuous horizontal bars and number four horizontal bars at opening widths reinforce the wall-to-slab intersection. The concrete slab on grade ties into the wall panel with a two-inch clear spacing. A note indicates that at the contractor's option, the panel connection may be made from the inside.
