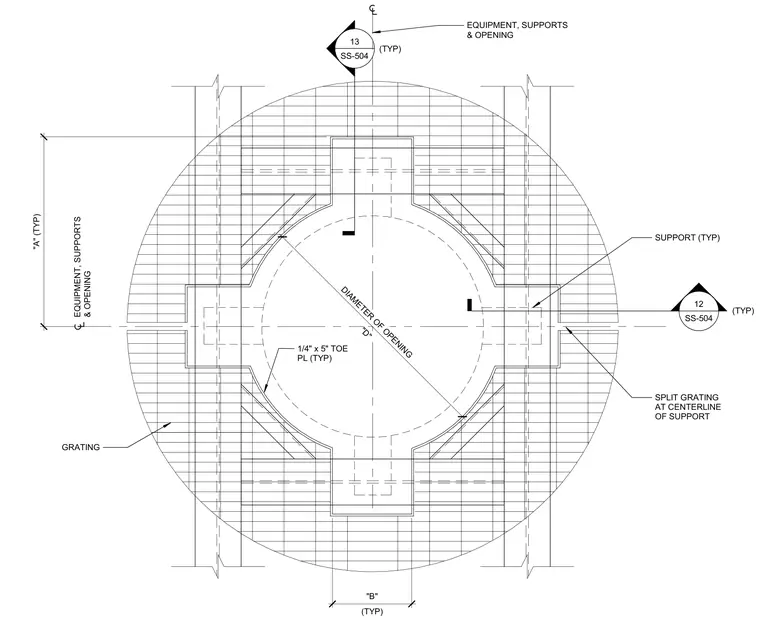

A circular equipment opening features a one-quarter inch by five-inch toe plate along the perimeter and split grating located at the centerline of support. The assembly is framed by typical structural supports with dimensional variables for the opening diameter, offset widths, and spacing.
1/4" x 5" TOE PL (TYP) (TYP) "B" SUPPORT (TYP) "A" (TYP) EQUIPMENT, SUPPORTS & OPENING EQUIPMENT, SUPPORTS & OPENING GRATING SPLIT GRATING AT CENTERLINE OF SUPPORT "D" DIAMETER OF OPENING 13 SS-504 12 SS-504 (TYP) (TYP)
