Metal roof deck bears on structural steel framing members with fasteners specified at the low flutes per the deck schedule. A three-eighths-inch full-depth stiffener plate is welded to the support member web. Fasteners and weld sizes are indicated by standard notations for typical conditions.

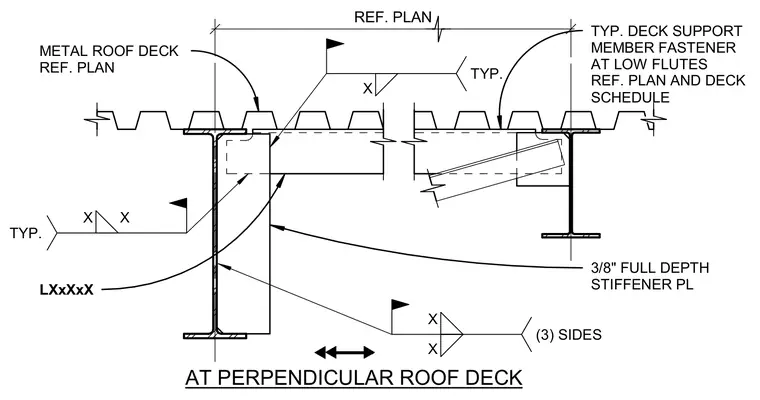

METAL ROOF DECK REF. PLAN REF. PLAN AT PERPENDICULAR ROOF DECK X X (3) SIDES X TYP. TYP. DECK SUPPORT MEMBER FASTENER AT LOW FLUTES REF. PLAN AND DECK SCHEDULE X X TYP. LXxXxX 3/8" FULL DEPTH STIFFENER PL
