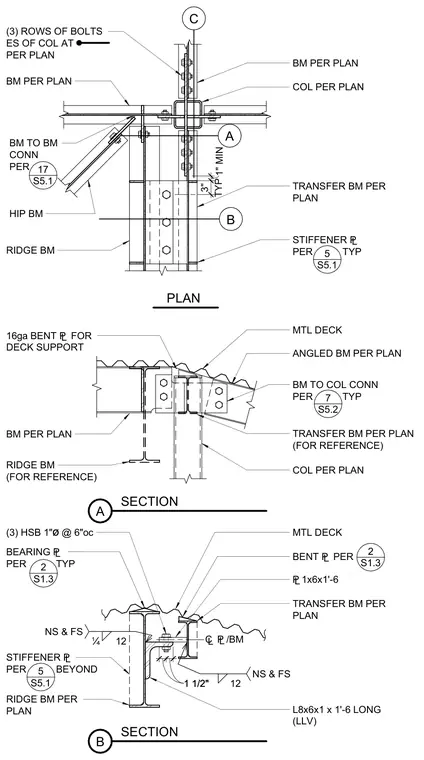

A structural steel framing connection involves a beam, column, transfer beam, and ridge beam with metal deck support. The assembly incorporates bearing plates, stiffener plates, and bent plates secured with one-inch diameter high-strength bolts spaced at six inches on center. Fillet welds of one-quarter inch are specified on near side and far side where indicated. An angle measuring eight by six by one inch and one foot six inches long is provided for support. Stiffener plates are detailed per reference schedules.
BEARING £ PER TYP 2 S1.3 ¢ £/BM 12 NS & FS TRANSFER BM PER PLAN £1x6x1'-6 MTL DECK (3) HSB 1"ø @ 6"oc L8x6x1 x 1'-6 LONG (LLV) 1 1/2" 1 1/2" Ë 12 NS & FS A SECTION A SECTION B MTL DECK RIDGE BM PER PLAN RIDGE BM (FOR REFERENCE) TRANSFER BM PER PLAN (FOR REFERENCE) ANGLED BM PER PLAN COL PER PLAN BM TO COL CONN PER TYP BM PER PLAN 7 S5.2 PLAN TYP 3" 1" MIN RIDGE BM TRANSFER BM PER PLAN BM PER PLAN COL PER PLAN BM PER PLAN (3) ROWS OF BOLTS ES OF COL AT PER PLAN B HIP BM BM TO BM CONN PER 17 S5.1 BENT £ PER 2 S1.3 C STIFFENER £ PER BEYOND 5 S5.1 STIFFENER £ PER TYP 5 S5.1 16ga BENT £ FOR DECK SUPPORT
