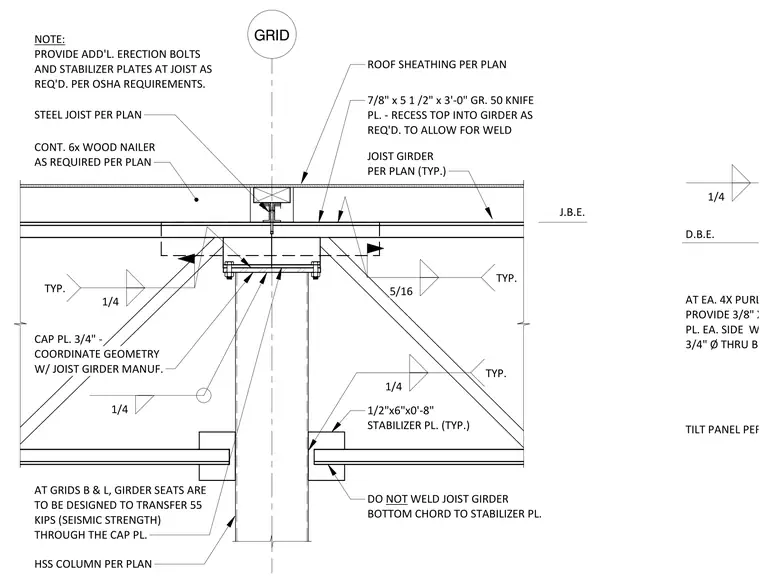

The assembly features a steel joist girder supported by a hollow structural section column, utilizing a three-quarter-inch thick cap plate to transition the load. A seven-eighths-inch by five-and-a-half-inch by three-foot grade 50 knife plate is recessed into the top of the girder to facilitate a welded connection. The joist girder is secured with five-sixteenth-inch typical fillet welds, while the knife plate connection uses one-quarter-inch typical fillet welds. Stabilizer plates measuring one-half-inch by six inches by eight inches are provided at the column, with a specific note to leave the joist girder bottom chord unwelded to the stabilizer plate. A continuous six-inch wood nailer is installed above the girder to support the roof sheathing per plan.
Text on the drawing
3 NOTE: PROVIDE ADD'L. ERECTION BOLTS AND STABILIZER PLATES AT JOIST AS REQ'D. PER OSHA REQUIREMENTS. J.B.E. JOIST GIRDER PER PLAN (TYP.) STEEL JOIST PER PLAN CAP PL. 3/4" - COORDINATE GEOMETRY W/ JOIST GIRDER MANUF. GRID 5/16 TYP. ROOF SHEATHING PER PLAN CONT. 6x WOOD NAILER AS REQUIRED PER PLAN 7/8" x 5 1 /2" x 3'-0" GR. 50 KNIFE PL. - RECESS TOP INTO GIRDER AS REQ'D. TO ALLOW FOR WELD 1/4 TYP.
