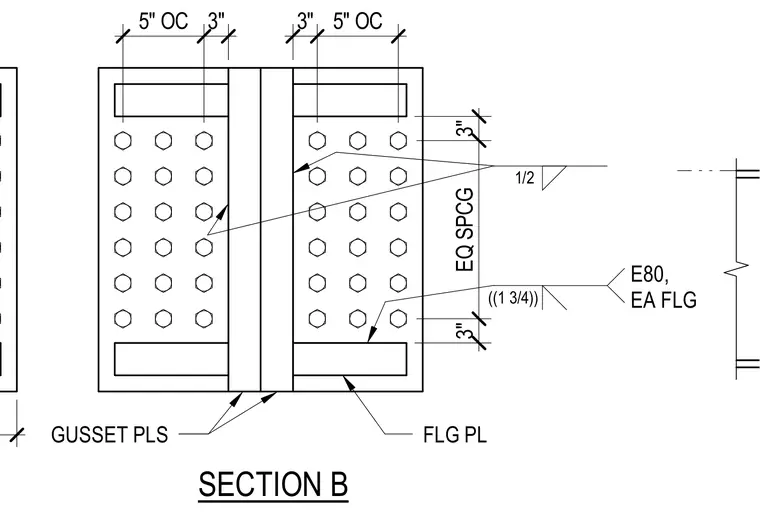

This structural connection detail features a half-inch flange plate welded with an E80 electrode on each flange, paired with gusset plates secured by bolted patterns spaced at three inches and five inches on center with equal spacing. The layout includes specific edge distances and fastener configurations detailed in Section B.
3" 5" OC 3" 5" OC 3" EQ SPCG 3" E80, EA FLG ((1 3/4)) 1/2 FLG PL GUSSET PLS SECTION B
