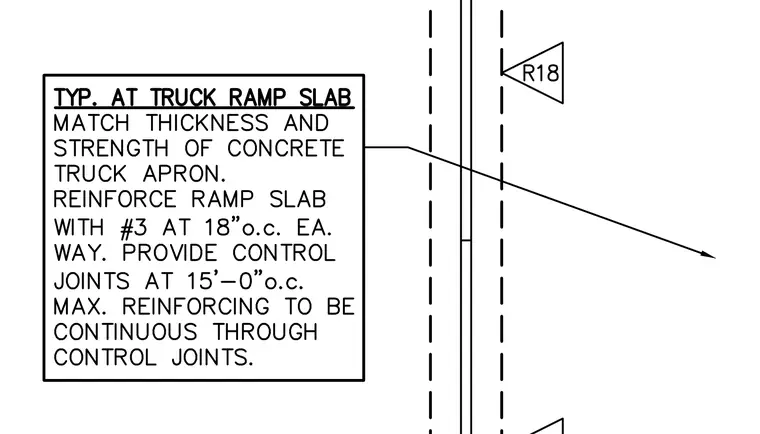

The truck ramp slab matches the thickness and strength of the concrete truck apron and is reinforced with number three bars spaced at eighteen inches on center each way. Control joints are provided at a maximum of fifteen feet on center with reinforcing continuous through the control joints.
