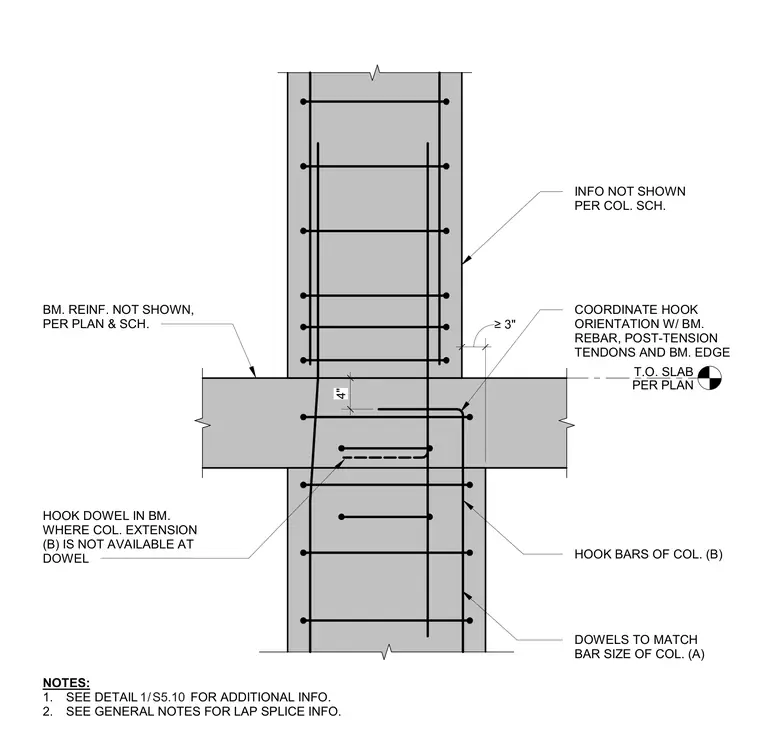

Vertical transition and dowel connection between a lower reinforced concrete column and an upper column passing through a floor slab. Dowel bars match the bar size of the lower column and hook into the supporting beam where column extension is unavailable. Vertical column bars extend past the slab interface with specified hook orientations coordinated with beam rebar, post-tension tendons, and slab edges. Additional column sizing and reinforcing are determined per the structural column schedule and framing plans.
HOOK BARS OF COL. (B) DOWELS TO MATCH BAR SIZE OF COL. (A) INFO NOT SHOWN PER COL. SCH. HOOK DOWEL IN BM. WHERE COL. EXTENSION (B) IS NOT AVAILABLE AT DOWEL NOTES: 1. SEE DETAIL FOR ADDITIONAL INFO. 2. SEE GENERAL NOTES FOR LAP SPLICE INFO. / 1 S5.10 T.O. SLAB PER PLAN ≥ 3" 4" BM. REINF. NOT SHOWN, PER PLAN & SCH. COORDINATE HOOK ORIENTATION W/ BM. REBAR, POST-TENSION TENDONS AND BM. EDGE
