Structural · S-S94AE

Special Force Reduction System Collector Beam Connection

Materials

Concrete Steel Glass / Glazing Metal (misc.)

Elements

Beams Roofs Decks Connections / Plates

Connections

Welded Connection Bolted Connection Deck Attachment

About this detail

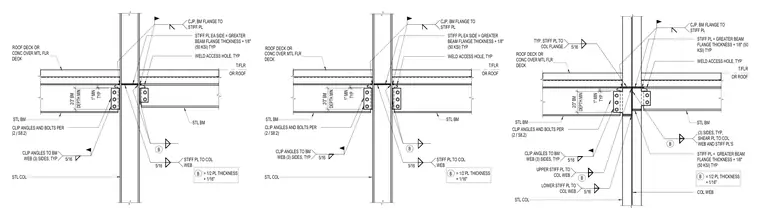

Collector beam connections frame steel beams to steel columns in a special force reduction system. The connection incorporates fifty ksi stiffener plates on each side of the column web, sized equal to the greater beam flange thickness plus one-eighth inch. Complete joint penetration welds connect the beam flanges to the stiffener plates, while five-sixteenth inch fillet welds attach the stiffener plates to the column web and flange. Clip angles secured with bolted connections attach the steel beam webs to the column. Concrete over metal floor deck bears at the top of the floor or roof assembly, maintaining standard weld access holes.
