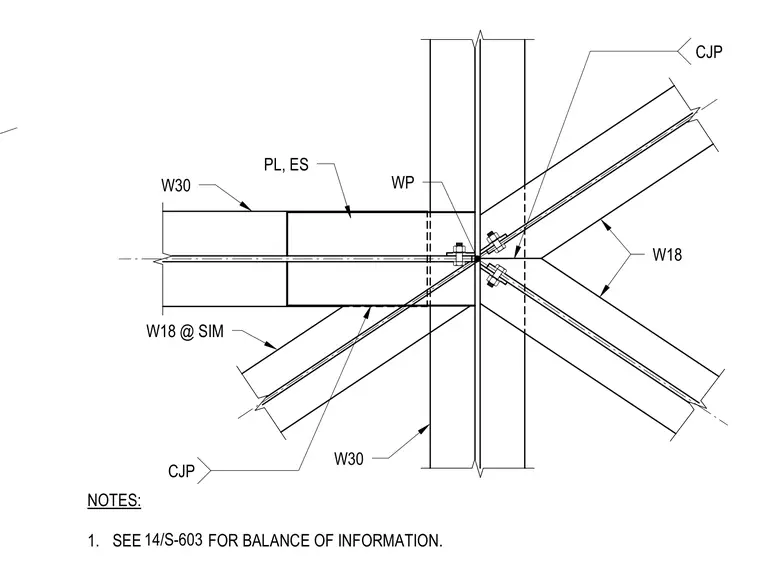

W18 diagonal bracing members intersect at a common work point with a W30 beam and column framing assembly, tied together using a gusset plate. Complete joint penetration welds secure the structural steel connections. Additional information is referenced on sheet 14/S-603.
W18 @ SIM W18 WP PL, ES CJP NOTES: 1. SEE FOR BALANCE OF INFORMATION. 14/S-603 W30 W30 CJP
