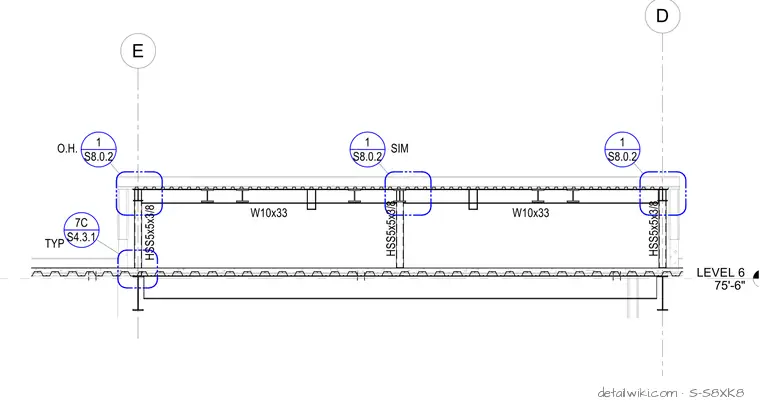

The drawing illustrates an ordinary moment frame elevation at Level 6, incorporating W10x33 steel beams and HSS5x5x3/8 columns. It features grid lines E and D, connection callouts referencing detail sheets such as S8.0.2 and S4.3.1, and indicates typical moment connections and column-to-beam arrangements.
Text on the drawing
D E LEVEL 6 75'-6" S8.0.2 1 O.H. S8.0.2 1 S8.0.2 1 SIM HSS5x5x3/8 HSS5x5x3/8 HSS5x5x3/8 W10x33 W10x33 S4.3.1 7C TYP
