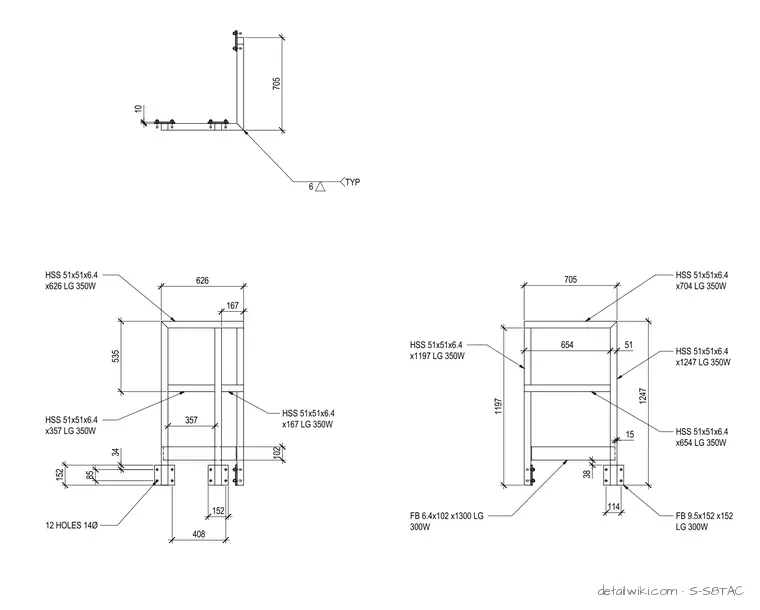

This structural steel handrail assembly utilizes hollow structural section members in 51x51x6.4 dimensions connected with flat bar plates and 14 millimeter diameter anchor holes. The framing includes multiple lengths of CSA G40.21 350W hollow structural sections ranging from 167 to 1247 millimeters long. Flat bar base plates measuring 9.5x152x152 and 6.4x102x1300 millimeters anchor the railing assembly. Fillet welds join the steel components together typically with a 6 millimeter size.
705 1247 15 654 51 1197 38 114 705 10 6 TYP 12 HOLES 14Ø 85 34 152 357 102 167 535 626 408 152 HSS 51x51x6.4 x1247 LG 350W HSS 51x51x6.4 x1197 LG 350W HSS 51x51x6.4 x704 LG 350W HSS 51x51x6.4 x654 LG 350W HSS 51x51x6.4 x626 LG 350W HSS 51x51x6.4 x357 LG 350W HSS 51x51x6.4 x167 LG 350W FB 9.5x152 x152 LG 300W FB 6.4x102 x1300 LG 300W
