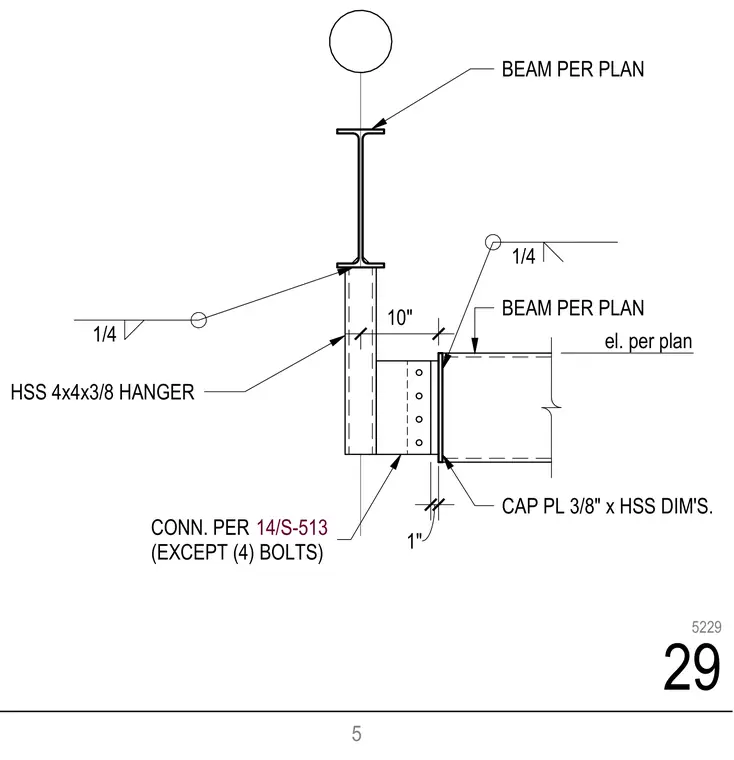

An HSS 4x4x3/8 hanger drops down from a structural steel beam per plan, secured with quarter-inch fillet welds. A secondary beam per plan frames into the HSS hanger via a connection utilizing four bolts and a 3/8-inch cap plate sized to the HSS dimensions. The connection details follow sheet 14/S-513 with the noted exception of four bolts.
BEAM PER PLAN HSS 4x4x3/8 HANGER 1/4 el. per plan CONN. PER (EXCEPT (4) BOLTS) 14/S-513 10" 1" 1/4 CAP PL 3/8" x HSS DIM'S. BEAM PER PLAN 5 29 5229
