Structural · S-S8M2X

Typical Concrete Footing Section and Reinforcement Notes

Materials

Concrete Reinforced Concrete Steel

Elements

Walls Foundations / Footings Anchors / Embeds Connections / Plates Reinforcing

Connections

Base Plate / Anchorage Bolted Connection Embed Plate

About this detail

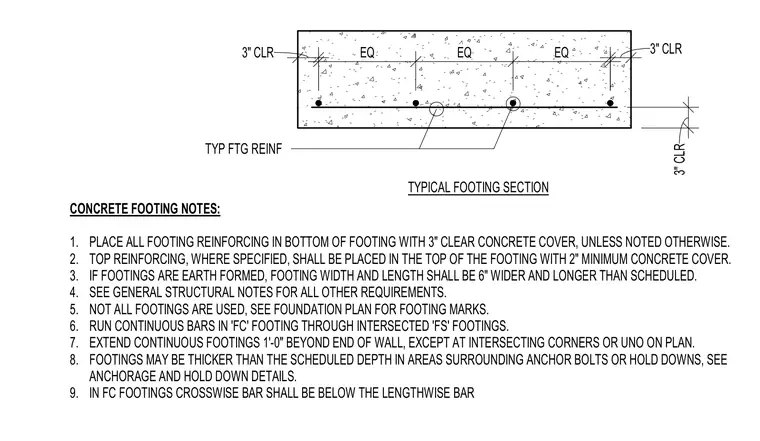

This typical footing section details the placement and clear cover requirements for concrete footings and reinforcing bars. Longitudinal and transverse reinforcement are positioned with three inches of clear concrete cover at the bottom, and equally spaced across the width of the section. Accompanying notes specify criteria for earth-formed footings, continuous bar placement through intersected footings, and extension requirements beyond wall ends.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
