Concrete Shear Wall Boundary Reinforcing Plan Detail

Materials

Concrete

Elements

Walls Shear Walls Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

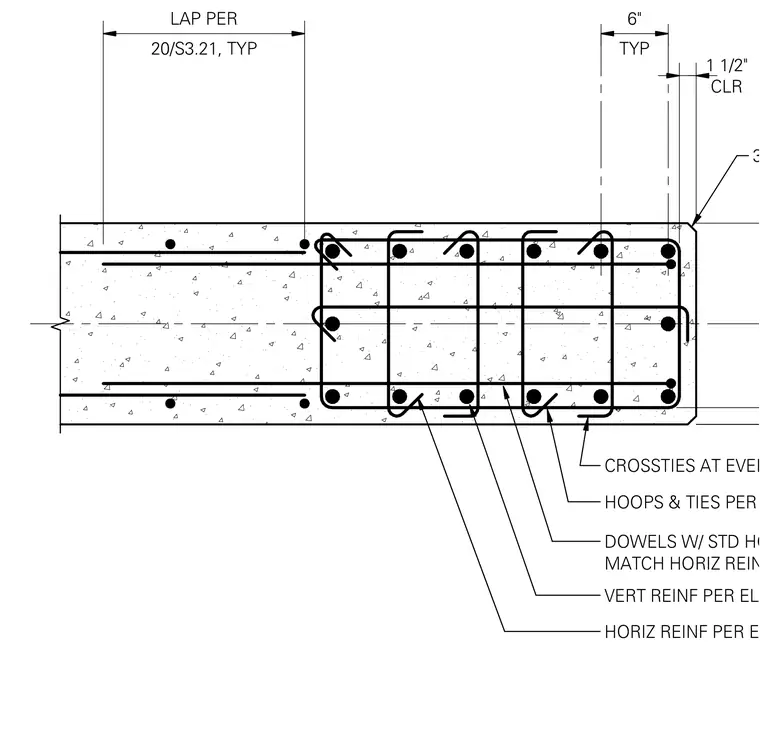

A concrete shear wall boundary element edge features a 3/4" chamfer and maintains a typical 1 1/2" concrete clearance. Vertical reinforcement and horizontal reinforcement are spaced per elevations, supplemented by dowels with standard hooks matching the horizontal reinforcing size. Hoops and ties enclose the vertical bars, supplemented by crossties at every row with alternate hooks. Lap splices comply with detail 20 on sheet S3.21.
