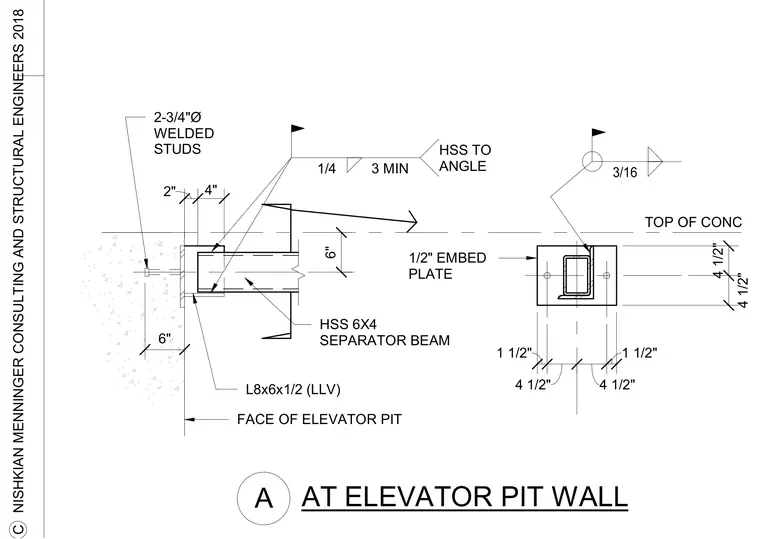

An HSS 6x4 separator beam frames into the concrete face of an elevator pit wall. The beam connects to an L8x6x1/2 angle with a three-inch minimum weld and a quarter-inch fillet weld. A half-inch embed plate with two three-quarter-inch diameter welded studs secures the assembly to the concrete pit wall.
TOP OF CONC FACE OF ELEVATOR PIT HSS 6X4 SEPARATOR BEAM L8x6x1/2 (LLV) 1/2" EMBED PLATE 2-3/4"Ø WELDED STUDS AT ELEVATOR PIT WALL A 2" 4" 6" 6" 1 1/2" 4 1/2" 4 1/2" 1 1/2" 4 1/2" 4 1/2" 3/16 1/4 3 MIN HSS TO ANGLE C NISHKIAN MENNINGER CONSULTING AND STRUCTURAL ENGINEERS 2018
