Structural · S-S8FTF

Thru-Bolted Angle Connection at Vestibule Framing and Window Mullion

Materials

Concrete Steel Metal (misc.)

Elements

Columns Beams Walls Windows Curtain Walls Skylights Floors / Slabs Decks Arches Entrances Connections / Plates

Connections

Bolted Connection

About this detail

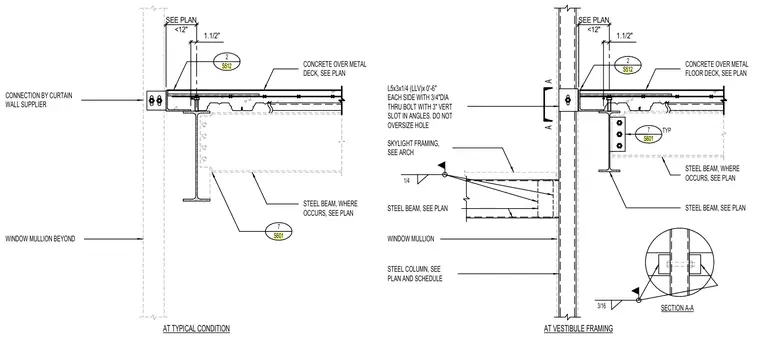

L5x3x1/4 angle segments placed on each side are secured with three-quarter-inch diameter thru bolts featuring a three-inch vertical slot in the angles with standard un-oversized holes. The assembly connects steel framing and concrete over metal floor decks to steel columns and beams at typical and vestibule framing conditions, incorporating window mullions and skylight framing as detailed per architectural drawings. Fillet welds of one-quarter-inch and three-sixteenth-inch sizes are specified where indicated by weld symbols.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
