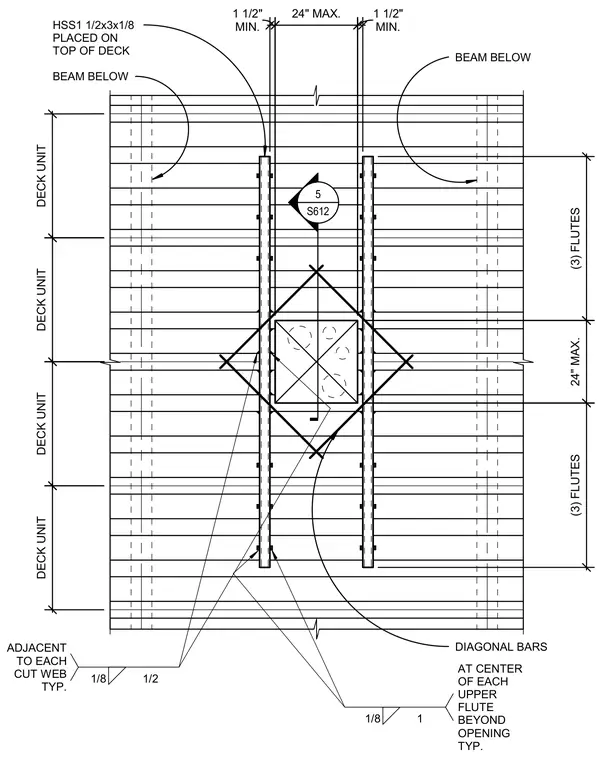

This structural plan detail shows framing around an opening in a metal deck unit. Hollow structural section members measuring HSS 1-1/2x3x1/8 are placed on top of the deck units parallel to the framing below, maintaining a maximum twenty-four-inch spacing spanning three flutes. Diagonal reinforcing bars intersect the corners of the opening and are welded adjacent to each cut web with a one-eighth-inch fillet weld and one-half-inch weld size. Additional fillet welds measuring one-eighth-inch by one inch are placed at the center of each upper flute beyond the opening. Beams located below provide primary structural support for the deck assembly.
BEAM BELOW BEAM BELOW DIAGONAL BARS HSS1 1/2x3x1/8 PLACED ON TOP OF DECK 1/8 1 AT CENTER OF EACH UPPER FLUTE BEYOND OPENING TYP. 1/8 1/2 ADJACENT TO EACH CUT WEB TYP. DECK UNIT DECK UNIT DECK UNIT DECK UNIT 24" MAX. MIN. 1 1/2" (3) FLUTES 24" MAX. (3) FLUTES 5 S612 MIN. 1 1/2"
