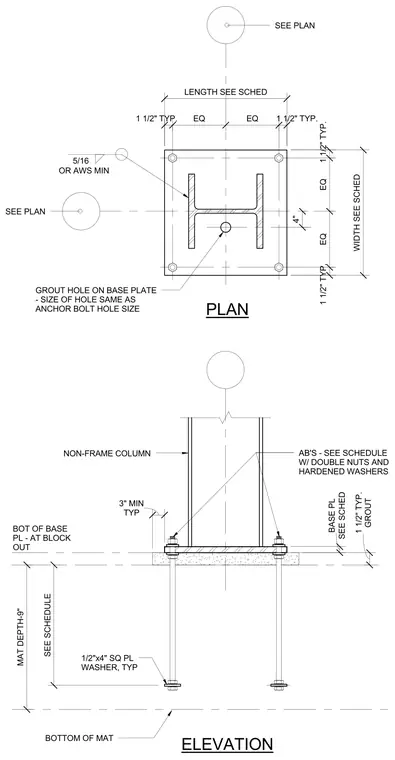

A non-frame steel column is welded to a base plate with a fillet weld sized per AWS minimums or five-sixteenths inches typical, supported by anchor bolts detailed in the structural schedule with double nuts and hardened washers. The base plate features a four-inch grout hole matching the anchor bolt hole size and rests over three inches minimum of non-shrink grout on a concrete foundation mat. The anchor bolts extend down into the mat foundation and terminate with half-inch by four-inch square plate washers typical at the bottom of the mat.
BOT OF BASE PL - AT BLOCK OUT AB'S - SEE SCHEDULE W/ DOUBLE NUTS AND HARDENED WASHERS SEE PLAN SEE PLAN NON-FRAME COLUMN ELEVATION PLAN BOTTOM OF MAT 1/2"x4" SQ PL WASHER, TYP OR AWS MIN 5/16 TYP 3" MIN GROUT 1 1/2" TYP. SEE SCHED BASE PL MAT DEPTH-9" 1 1/2" TYP. EQ EQ 1 1/2" TYP. WIDTH SEE SCHED 1 1/2" TYP. EQ EQ 1 1/2" TYP. LENGTH SEE SCHED 4" GROUT HOLE ON BASE PLATE - SIZE OF HOLE SAME AS ANCHOR BOLT HOLE SIZE SEE SCHEDULE
