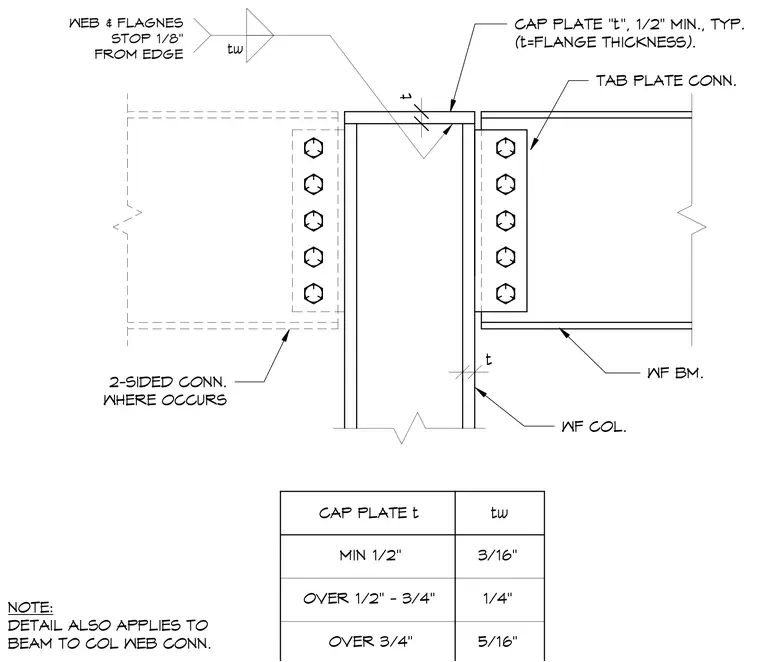

A wide flange steel column topped with a cap plate matching the flange thickness with a one-half inch minimum. Bolted tab plate connections secure wide flange beams to both sides of the column flange and web, with a two-sided connection applied where required. Weld sizes for the connection are specified in a schedule based on the cap plate thickness, ranging from three-sixteenths to five-sixteenths of an inch. Web and flanges are detailed to stop one-eighth inch from the edge.
t t CAP PLATE "t", 1/2" MIN., TYP. (t=FLANGE THICKNESS). 2-SIDED CONN. WHERE OCCURS WF BM. WF COL. NOTE: DETAIL ALSO APPLIES TO BEAM TO COL WEB CONN. CAP PLATE t tw MIN 1/2" 3/16" OVER 1/2" - 3/4" 1/4" OVER 3/4" 5/16" TAB PLATE CONN. tw WEB & FLAGNES STOP 1/8" FROM EDGE
