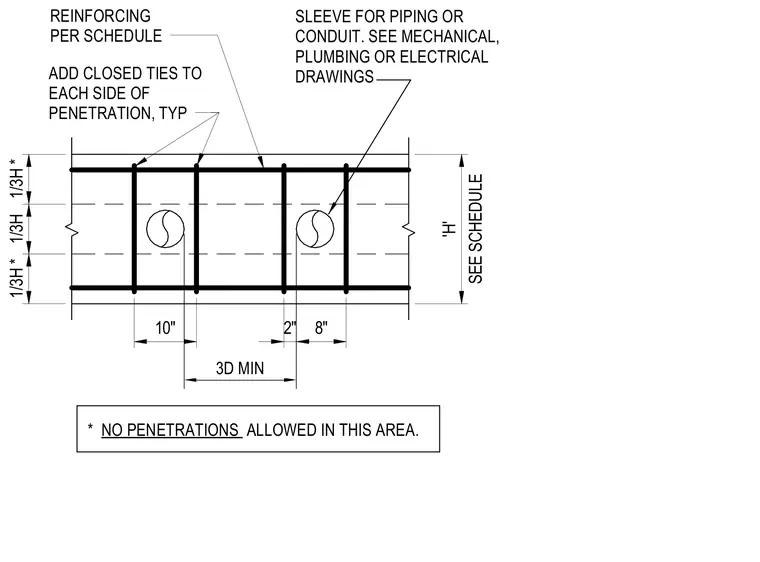

This structural detail shows a pipe or conduit sleeve passing through a grade beam with reinforcing per schedule and closed ties added to each side of the penetration typically. No penetrations are allowed in the outer third height zones of the beam. Clearances include a minimum spacing of three times the diameter between penetrations with specific dimensional constraints.
3D MIN * NO PENETRATIONS ALLOWED IN THIS AREA. REINFORCING PER SCHEDULE SLEEVE FOR PIPING OR CONDUIT. SEE MECHANICAL, PLUMBING OR ELECTRICAL DRAWINGS ADD CLOSED TIES TO EACH SIDE OF PENETRATION, TYP 1/3H * 1/3H 1/3H * 10" 2" 8" SEE SCHEDULE 'H'
