A concrete masonry unit wall runs parallel to a steel roof deck framing system. Channel sections such as C5x6.7 or C5x9 attach to each side of the masonry wall with fillet welds and span up to 8'-0" maximum. A reinforced bond beam tops the masonry wall, leaving a typical top gap beneath the roof joist or wide-flange beam filled with a fire-rated compressible filler. The masonry wall extends at least one course minimum above the channels.

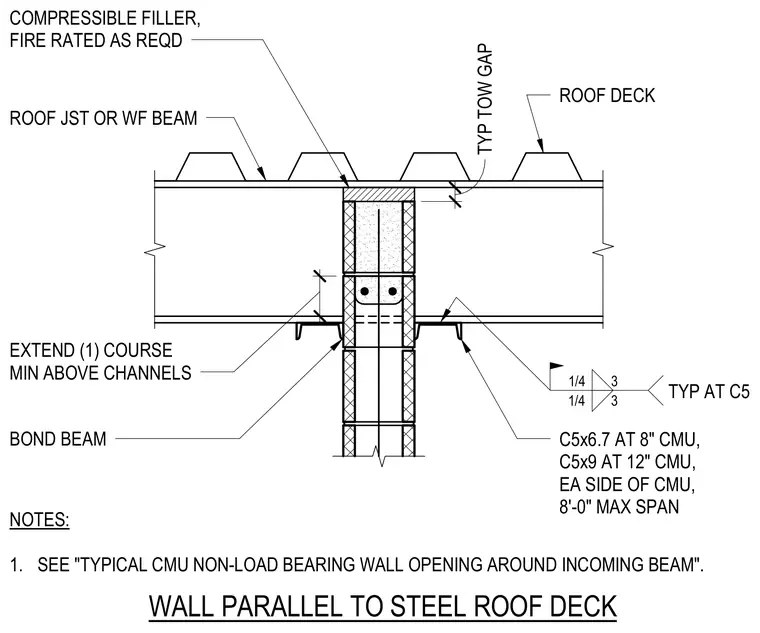

1 1/2" EXTEND (1) COURSE MIN ABOVE CHANNELS TYP AT C5 3 3 1/4 1/4 C5x6.7 AT 8" CMU, C5x9 AT 12" CMU, EA SIDE OF CMU, 8'-0" MAX SPAN ROOF DECK ROOF JST OR WF BEAM COMPRESSIBLE FILLER, FIRE RATED AS REQD WALL PARALLEL TO STEEL ROOF DECK 4 1/4" BOND BEAM NOTES: 1. SEE "TYPICAL CMU NON-LOAD BEARING WALL OPENING AROUND INCOMING BEAM". TYP TOW GAP
