Typical Hss Beam To Hss Column

Materials

Concrete Steel Timber / Wood Brick Metal (misc.)

Elements

Columns Beams Walls Curtain Walls Facades / Cladding Roofs Decks Arches Bracing Connections / Plates

Connections

HSS Connection Bracing Connection

About this detail

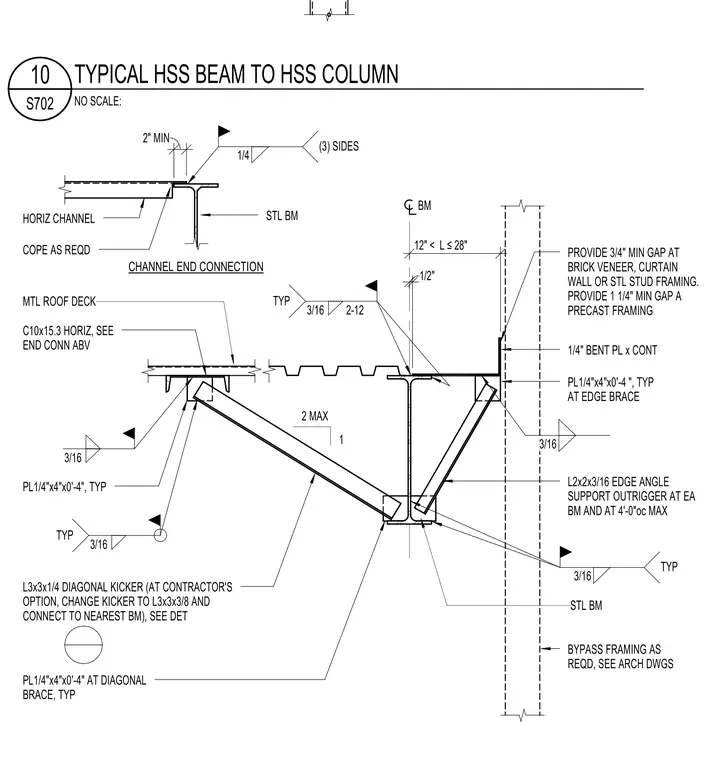

A structural steel beam framing connection incorporates a channel end connection welded on three sides with a quarter-inch fillet weld, maintaining a two-inch minimum horizontal clearance. A C10x15.3 horizontal channel connects below a metal roof deck, supported by a diagonal kicker made from an L3x3x1/4 angle with quarter-inch plates measuring four inches by four inches by four inches. The contractor has the option to change the kicker angle to an L3x3x3/8 and connect to the nearest beam. Edge conditions include an L2x2x3/16 edge angle supporting outriggers at each beam and at four feet on center maximum, with continuous quarter-inch bent plates and specific dimensional gaps provided for brick veneer, curtain wall, or stud framing.
