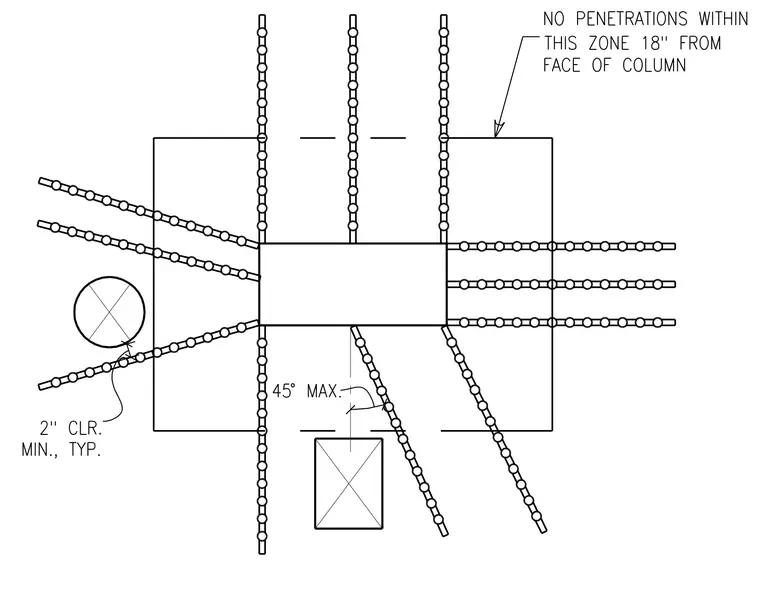

Stud rails radiate outward from a central column layout, intersected by slab openings restricted to a maximum forty-five-degree angle from the rail axis. A clear prohibition zone extends eighteen inches from the face of the column, within which no penetrations are permitted. A two-inch minimum clearance is maintained typically for all surrounding conditions.
