Slab on Metal Deck Connection to Concrete Wall with Post-Installed Angle

Materials

Concrete Steel

Elements

Columns Walls Floors / Slabs Decks Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development Deck Attachment Embed Plate

About this detail

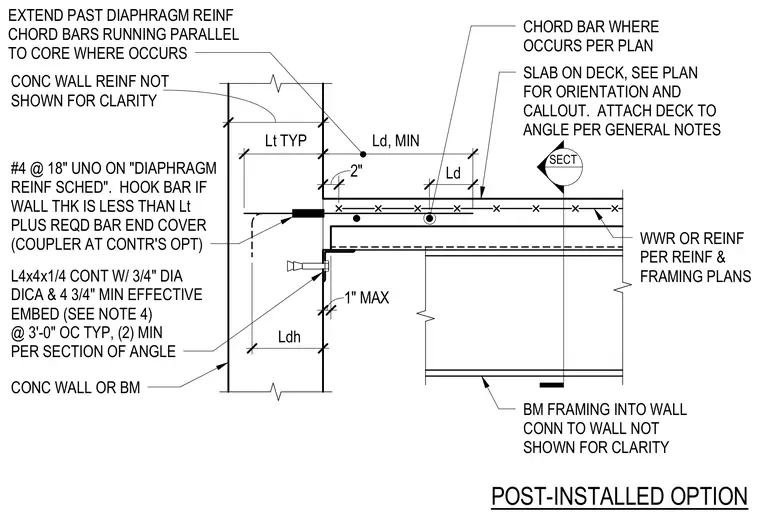

A continuous structural angle sized L4x4x1/4 is anchored to a concrete wall or beam using three-quarter-inch diameter post-installed anchors with a four-and-three-quarter-inch minimum effective embedment, spaced at three feet on center with a minimum of two anchors per section of angle. The metal deck slab bears against the wall, utilizing a chord bar and welded wire reinforcement or reinforcing steel per the structural framing plans. Number four reinforcing bars spaced at eighteen inches on center are provided unless noted otherwise on the diaphragm reinforcing schedule, with hooked bars utilized if the wall thickness is less than the required development length plus end cover, or a mechanical coupler at the contractor's option. The steel beam framing into the wall is shown with connections omitted for clarity, and chord bars extend past the diaphragm reinforcement parallel to the core where applicable.
