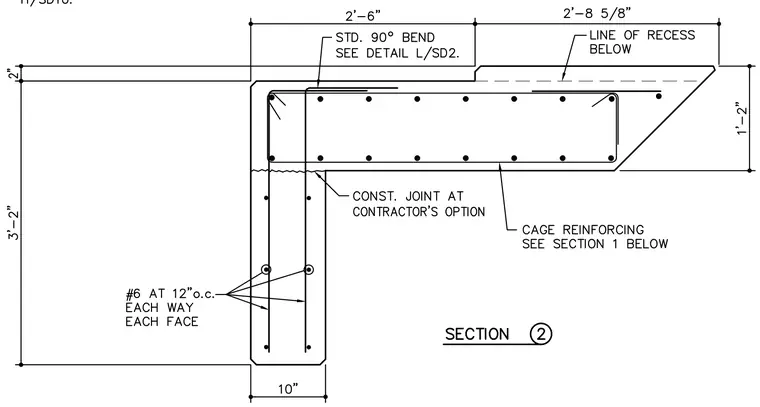

A reinforced concrete wall section features a top recess and a construction joint located at the contractor's option. The vertical wall element is ten inches thick with number six reinforcing bars spaced at twelve inches on center in each direction on each face. A horizontal cage reinforcing assembly ties into the vertical wall with a standard ninety-degree bend detail referencing sheet L/SD2. The upper cantilevered section measures two feet six inches on the left and two feet eight and five-eighths inches on the right, with an overall height of one foot two inches.
